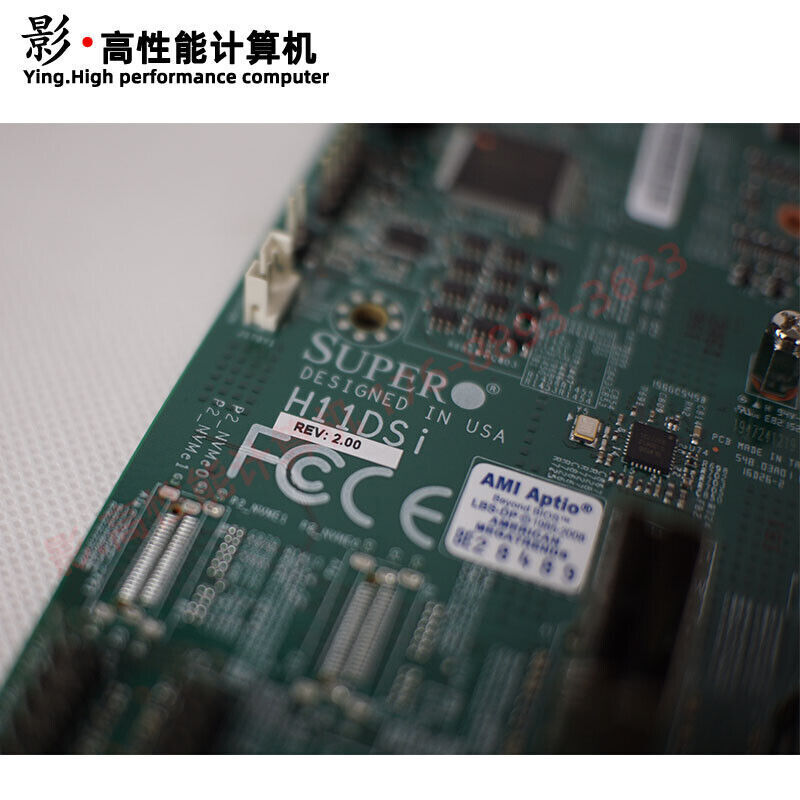

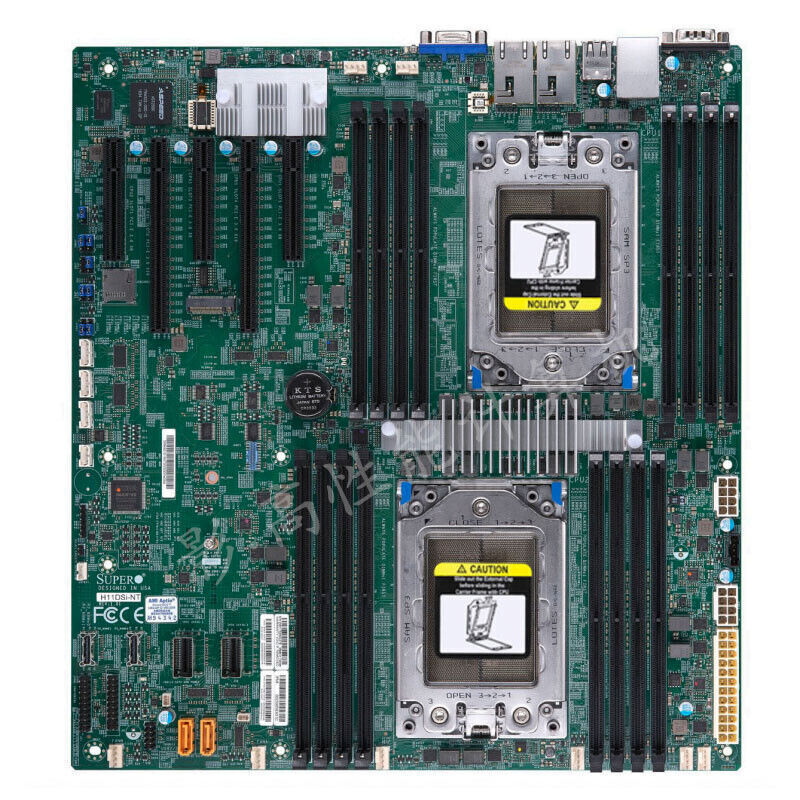

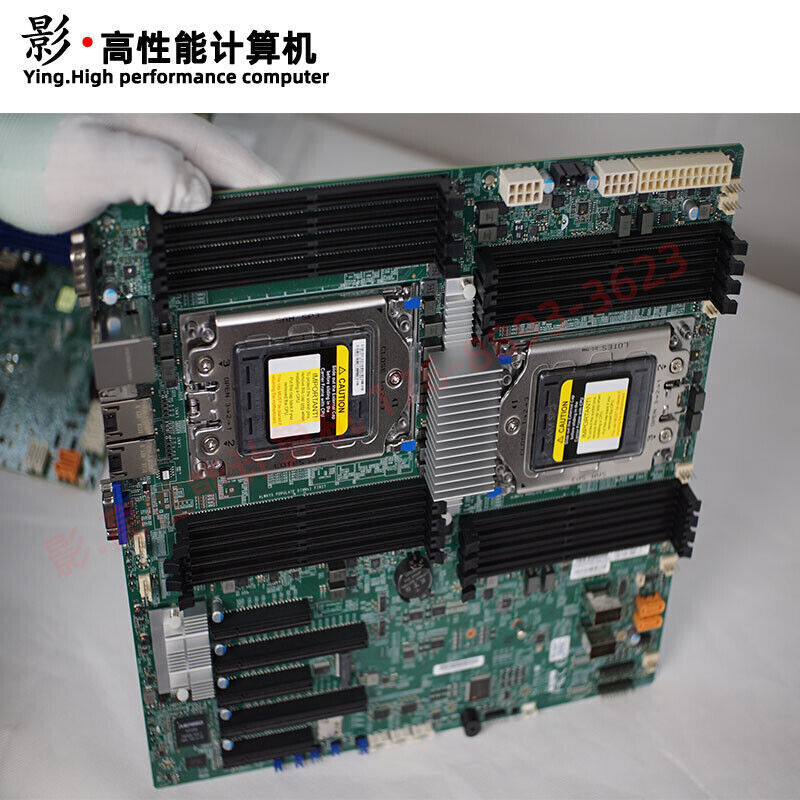

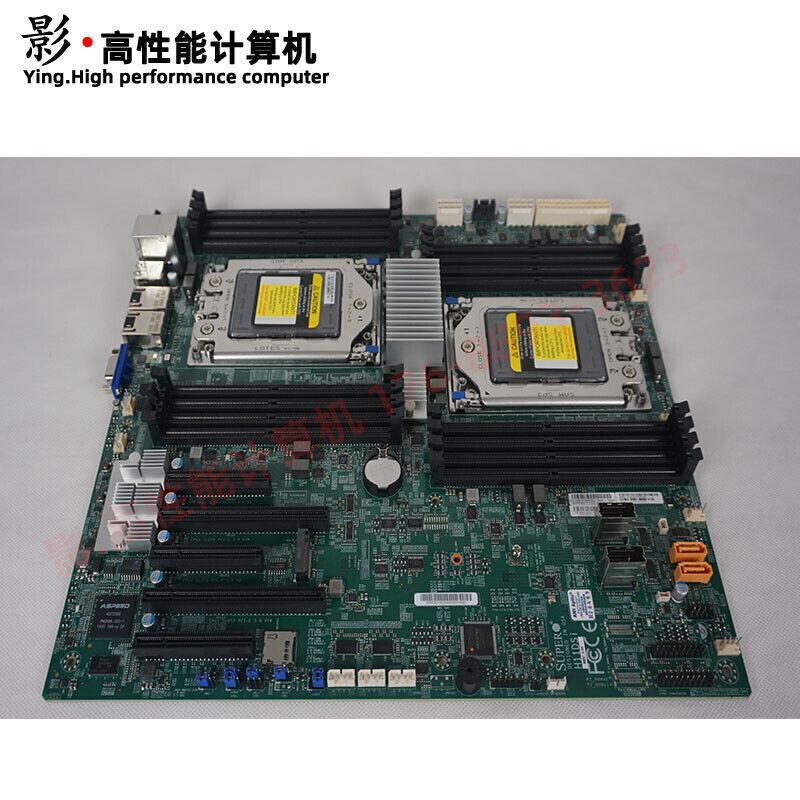

H11DSI-NT REV 2.0 SuperMicro 128-core Server Dual Gigabit Ethernet For EPYC7702

Welcome to here, thank you for viewing our page. We will provide you best serviceand high quality products.

            Every Item will be inspect before ship it out,we ensure it qualified in orders,

            and everyone will be packaged carefully. You must be happy to do business with us.



Item Including： 1x motherboard,no other accessories included.

Product SKUs

MBD-H11DSi-NT

H11DSi-NT

MBD-H11DSi-NT-B

H11DSi-NT (Bulk Pack)

Physical Stats

Form Factor

E-ATX

Dimensions

12" x 13.05" (30.5cm x 33.1cm)

Processor/Chipset

CPU

Dual AMD EPYC™ 7001/7002* series Processors (*Board revision 2.x required)

Socket SP3

Up to 240W TDP

Cores

Up to 32 Cores

Up to 64 Cores (Board revision 2.x required)

Chipset

System on Chip

System Memory

Memory Capacity

16 DIMM sockets

Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM

Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)

8-channel memory bus

Memory Type

DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs

DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)

DIMM Sizes

8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required)

Memory Voltage

1.2V

Error Detection

Corrects single-bit errors

Detects double-bit errors (using ECC memory)

On-Board Devices

SATA

SATA3 (6 Gbps)

IPMI

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2500 BMC

Network Controllers

Intel® X550 10G Base-T Ethernet Controller

1 Realtek RTL8211E PHY (dedicated IPMI)

VGA

ASPEED AST2500 BMC

Input / Output

SATA

10 SATA3 (6 Gbps) ports

NVMe

2 Internal NVMe Ports (PCI-E 3.0 x4)

LAN

2 RJ45 10GBase-T ports

1 RJ45 Dedicated IPMI LAN port

USB

2 USB 3.0 ports (rear)

4 USB 2.0 ports (2 rear + 2 via header)

VGA

1 VGA port

Others

1 COM port (rear)

2 SATA DOM power connectors

1 TPM 2.0 header

Expansion Slots

PCI-Express

3 PCI-E 3.0 x8

2 PCI-E 3.0 x16

M.2

Interface: 1 SATA/PCI-E 3.0 x2

(Platform with EPYC 7002 processor only supports PCI-E type M.2 module)

Form factor: 2280, 22110

Key: M-key

Chassis ( Optimized for H11DSI-NT )

2U

SC213AC-R1K23LPB

SC216BE1C4-R1K23LPB

SC825TQC-R802LPB

SC826BE1C4-R1K23LPB

SC829HE1C4-R1K62LPB

3U

SC836BE1C-R1K23B

4U

SC745BAC-R1K28B2

SC846BE1C-R1K23B

Server(s) ( with H11DSI-NT )

Model(s)

AS -4023S-TRT

System BIOS

BIOS Type

AMI 128Mb SPI Flash EEPROM

BIOS Features

Plug and Play (PnP)

DMI 2.3

PCI 2.2

ACPI 5.1

USB Keyboard Support

SMBIOS 3.1.1

Management

Software

Super Doctor 5

Watch Dog

NMI

SUM

IPMI 2.0, KVM with dedicated LAN

Power Configurations

ACPI Power Management

Power-on mode control for AC power loss recovery

PC Health Monitoring

CPU

Monitors CPU Core Voltages, +1.1V, +1.5V, +1.8V, +12V, +5V, +5V standby

CPU switching voltage regulator

FAN

Up to 8-fan status tachometer monitoring

Up to eight 4-pin fan headers

Dual Cooling Zone

Status monitor for speed control

Pulse Width Modulated (PWM) fan connectors

Temperature

Monitoring for CPU and chassis environment

CPU Thermal Trip Support

Thermal control for 8x Fan connectors

I2C Temperature Sensing Logic

LED

CPU / System Overheat LED

Other Features

Chassis Intrusion Detection

Chassis Intrusion Header

UID

Operating Environment / Compliance

Environmental Specifications

Operating Temperature:

10°C to 35°C (50°F to 95°F)

Non-operating Temperature:

-40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity:

8% to 90% (non-condensing)

Non-operating Relative Humidity:

5% to 95% (non-condensing)
