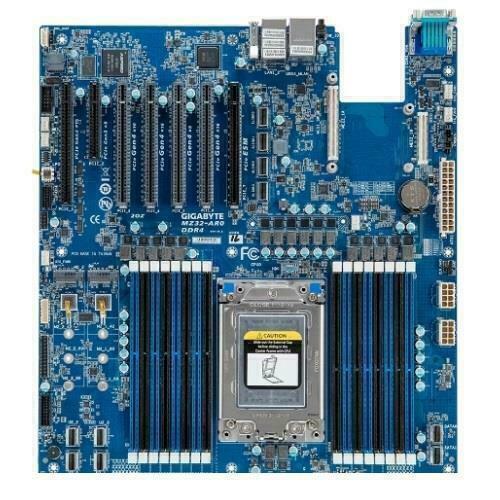

Gigabyte MZ32-AR0 Motherboard REV 1.0 for AMD EPYC 7002 series CPU

Welcome to here, thank you for viewing our page. We will provide you best serviceand high quality products.

            Every Item will be inspect before ship it out,we ensure it qualified in orders,

            and everyone will be packaged carefully. You must be happy to do business with us.



Item Including： 1x motherboard

Board Size

E-ATX

305W x 330D (mm)

Processor Supported

AMD EPYC™ 7002 series processor family

Single processor, 7nm, Socket SP3

Up to 64-core, 128 threads per processor

cTDP up to 240W

Fully support 280W

NOTE: Please make sure Fan-sink supports over 280W CPU

Compatible with AMD EPYC™ 7001 series processor family

Socket

Socket SP3

Chipset Description

System on Chip

Memory Type

16 x DIMM slots

DDR4 memory supported only

8-Channel memory architecture

RDIMM modules up to 128GB supported

LRDIMM modules up to 128GB supported

Memory speed: Up to 3200*/ 2933 MHz

- Note:

* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

Integrated Network

2 x 1GbE LAN ports (1 x Intel® I350-AM2)

1 x 10/100/1000 management LAN

Integrated Video Controller

Integrated in Aspeed® AST2500

2D Video Graphic Adapter with PCIe bus interface

1920x1200@60Hz 32bpp

Integrated Audio Controller

N/A

Integrated SAS Controller

N/A

Integrated SATA Controller

2 x SlimSAS 4i for 8 x SATA ports

Support RAID Function

N/A

Expansion Slot

Slot_7: 1 x PCIe x16 (Gen4 x16 bus) slot; shared with 4 x NVMe ports

Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot

Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot

Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot

Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot

Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot

Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot; shared with slot_2

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 with NCSI supported)

2 x M.2 slots:

- M-key

- PCIe Gen3 x4

- Supports 2242/2260/2280 cards

4 x NVMe ports:

- SlimSAS 4i type

- PCIe Gen3 x4 per port

- Shared with Slot_7 PCIe Gen4 x16 slot

On-Board Connector

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

10 x SlimSAS connectors

2 x M.2 slots

1 x CPU fan headers

5 x System fan headers

1 x USB 3.0 header

1 x USB 2.0 header

1 x COM_2 header

1 x TPM header

1 x Front panel header

1 x HDD back plane board header

1 x PMBus connector

1 x IPMB connector

1 x Clear CMOS jumper

1 x BIOS recovery jumper

1 x Buzzer

Rear I/O Connectors

3 x USB 3.0

1 x VGA

1 x COM_1

2 x RJ45

1 x MLAN

1 x ID button with LED

TPM

1 x TPM header with SPI interface

Optional TPM2.0 kit: CTM010

OS Driver Supported

Windows Server 2016 ( X2APIC/256T not supported)

Windows Server 2019

Red Hat Enterprise Linux 7.6 ( x64) or later

Red Hat Enterprise Linux 8.0 ( x64) or later

SUSE Linux Enterprise Server 12 SP4 ( x64) or later

SUSE Linux Enterprise Server 15 SP1 ( x64) or later

Ubuntu 16.04.6 LTS (x64) or later

Ubuntu 18.04.3 LTS (x64) or later

Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 EP15 or later

VMware ESXi 6.7 Update3 or later

VMware ESXi 7.0 or later

Citrix Hypervisor 8.1.0 or later

Server Management

Aspeed® AST2500 management controller

GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard

JAVA Based Serial Over LAN

HTML5 KVM

Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)

Sensor Reading History Data

FRU Information

SEL Log in Linear Storage / Circular Storage Policy

Hardware Inventory

Fan Profile

System Firewall

Power Consumption

Power Control

LDAP / AD / RADIUS Support

Backup & Restore Configuration

Remote BIOS/BMC/CPLD Update

Event Log Filter

User Management

Media Redirection Settings

PAM Order Settings

SSL Settings

SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C

Operating humidity: 8-80% (non-condensing)

Non-operating temperature: -40°C to 60°C

Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MZ32-AR0

1 x I/O shield

Bulk Packaging Content

10 x MZ32-AR0

10 x I/O shields

Carton dimensions: 600 x 473 x 495 mm

Ordering Information

Retail: 9MZ32AR0MR-00

Bulk: 9MZ32AR0NR-00

Part Numbers:

- I/O shield: 12AIO-MZ32A0-00R

- SlimSAS for 4 x SATAIII 6Gb/s cable: 25CFM-600800-A4R
